Supermicro SC216B 24-Bay 2.5" SAS/SATA JBOD 2U Rackmount Storage Enclosure CSE-216BE1C-R609JBOD | 24-Bay Data Center JBOD Enclosure (Refurbished)
Supermicro CSE-216BE1C-R609JBOD — Single-Expander Storage Array (JBOD Only)

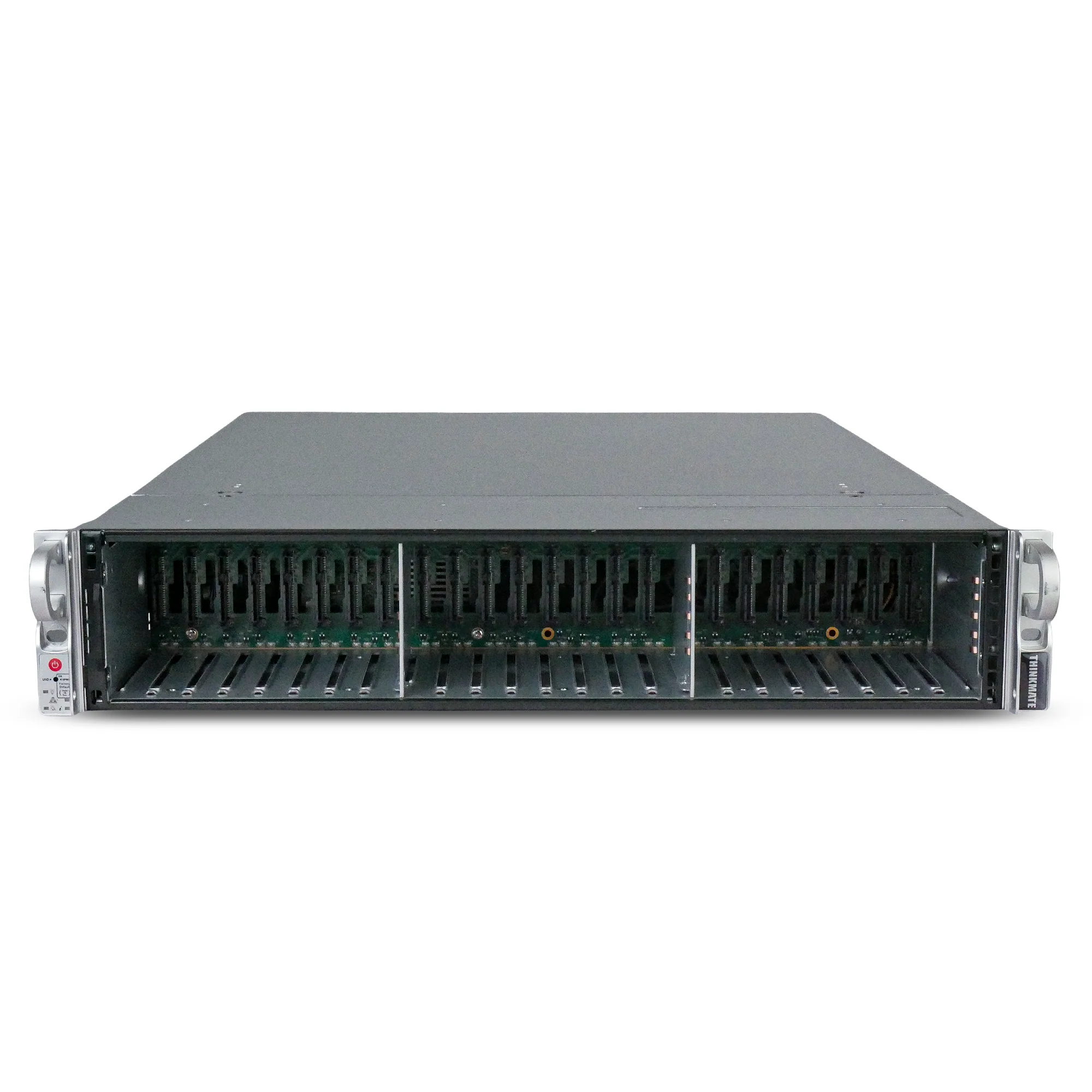

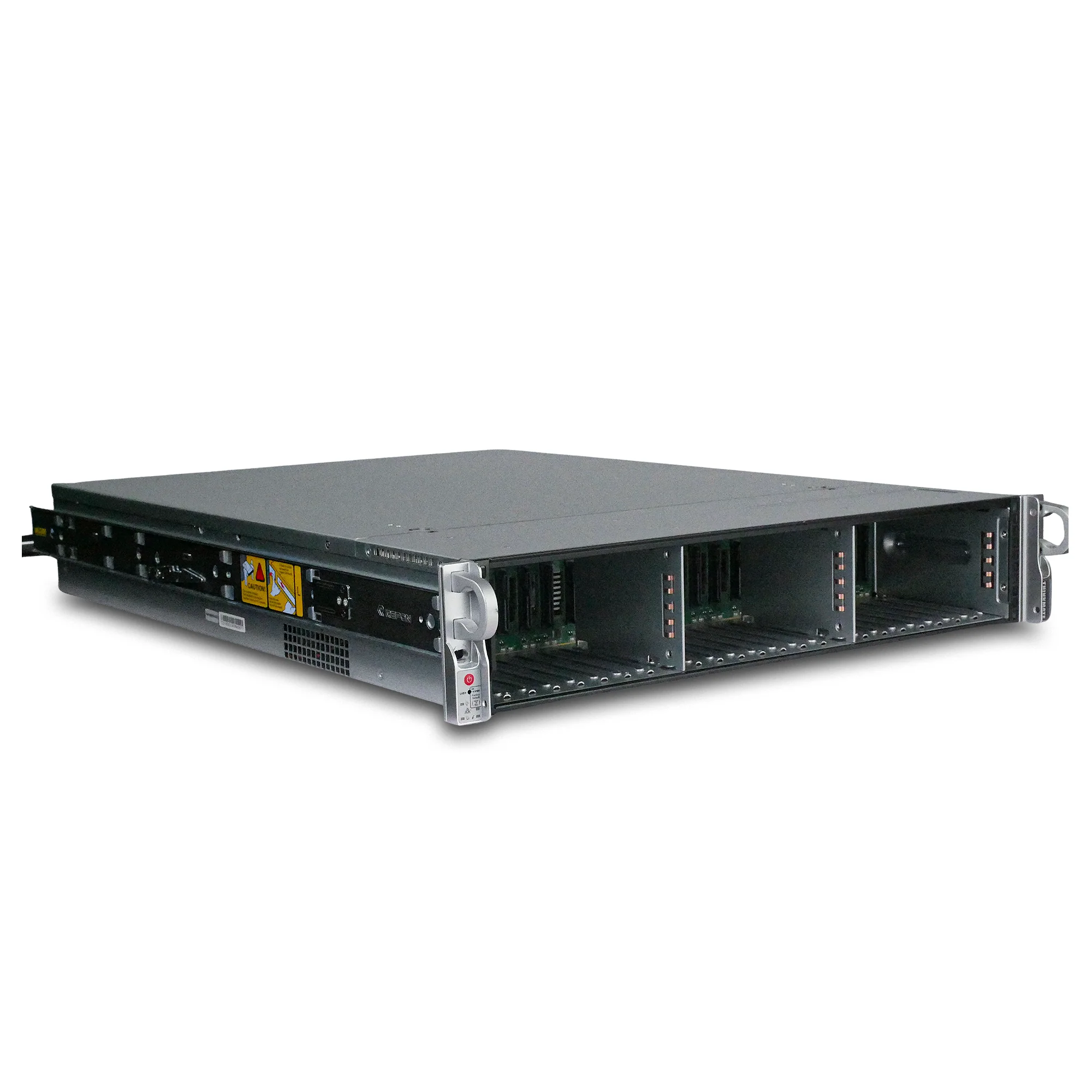

This Supermicro 2U 24-bay JBOD enclosure is an enterprise-grade, space-efficient storage solution designed for high-performance and scalable data environments. Built around a SAS3 infrastructure, it delivers reliable, high-speed disk expansion for servers requiring flexible storage configurations without integrated RAID dependency.
Highlights

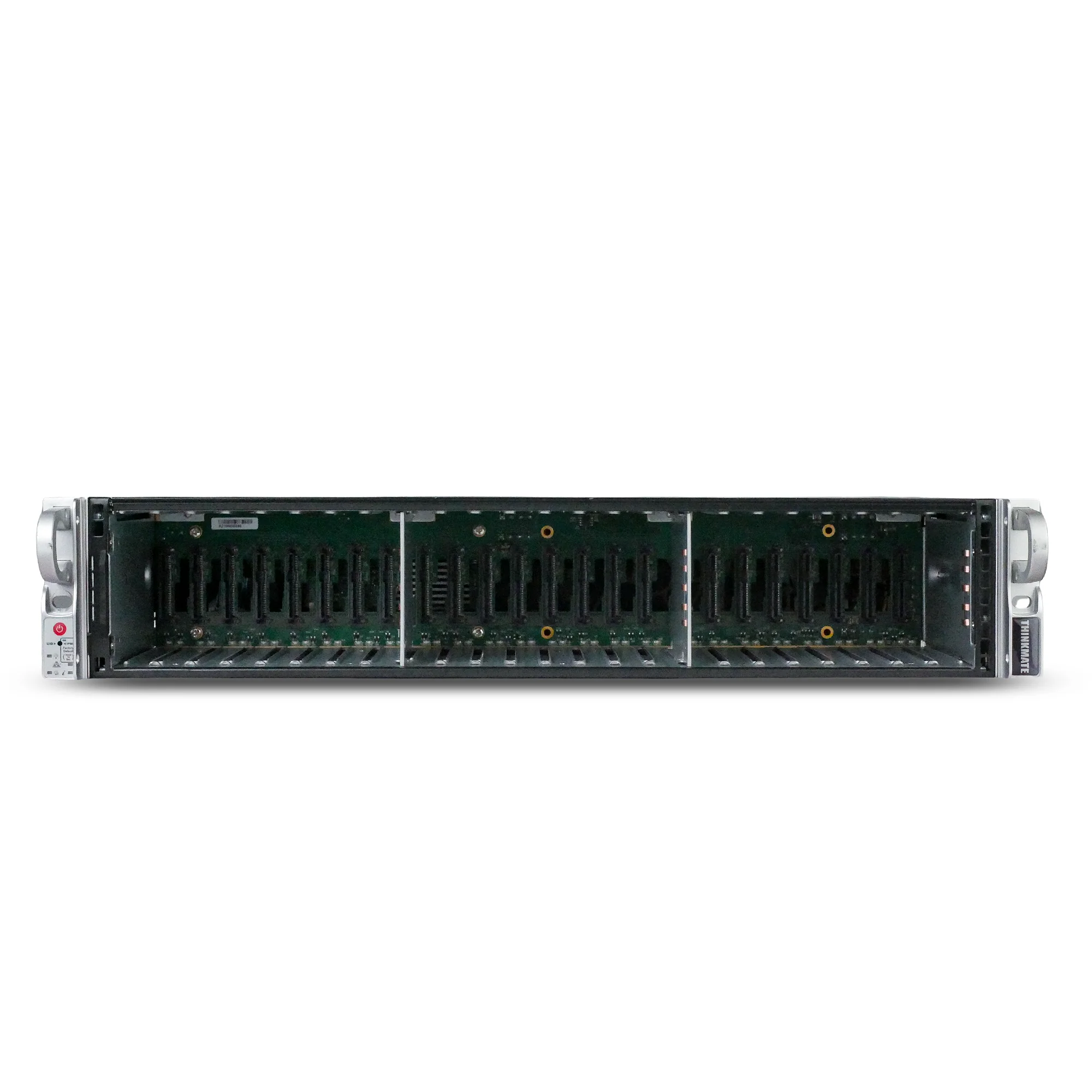

- Compact High-Density 2U Chassis: Supports up to 24 hot-swappable 2.5" SAS/SATA drives in a space-saving 2U rackmount form factor, ideal for dense data center deployments.
- SAS3 Expander-Based Architecture: Equipped with a 24-port SAS3 (12Gbps) single-expander backplane, enabling efficient data routing and high-bandwidth connectivity across all drives via a reduced number of external SAS links.
- Flexible Drive Compatibility: Supports both SAS and SATA 2.5" drives, allowing a mix of high-performance SSDs and capacity-focused HDDs depending on workload requirements.
- JBOD-Only Operation: Functions purely as a JBOD enclosure with no built-in RAID controller, giving full control to the host system or external SAS HBA/RAID controller for storage configuration.

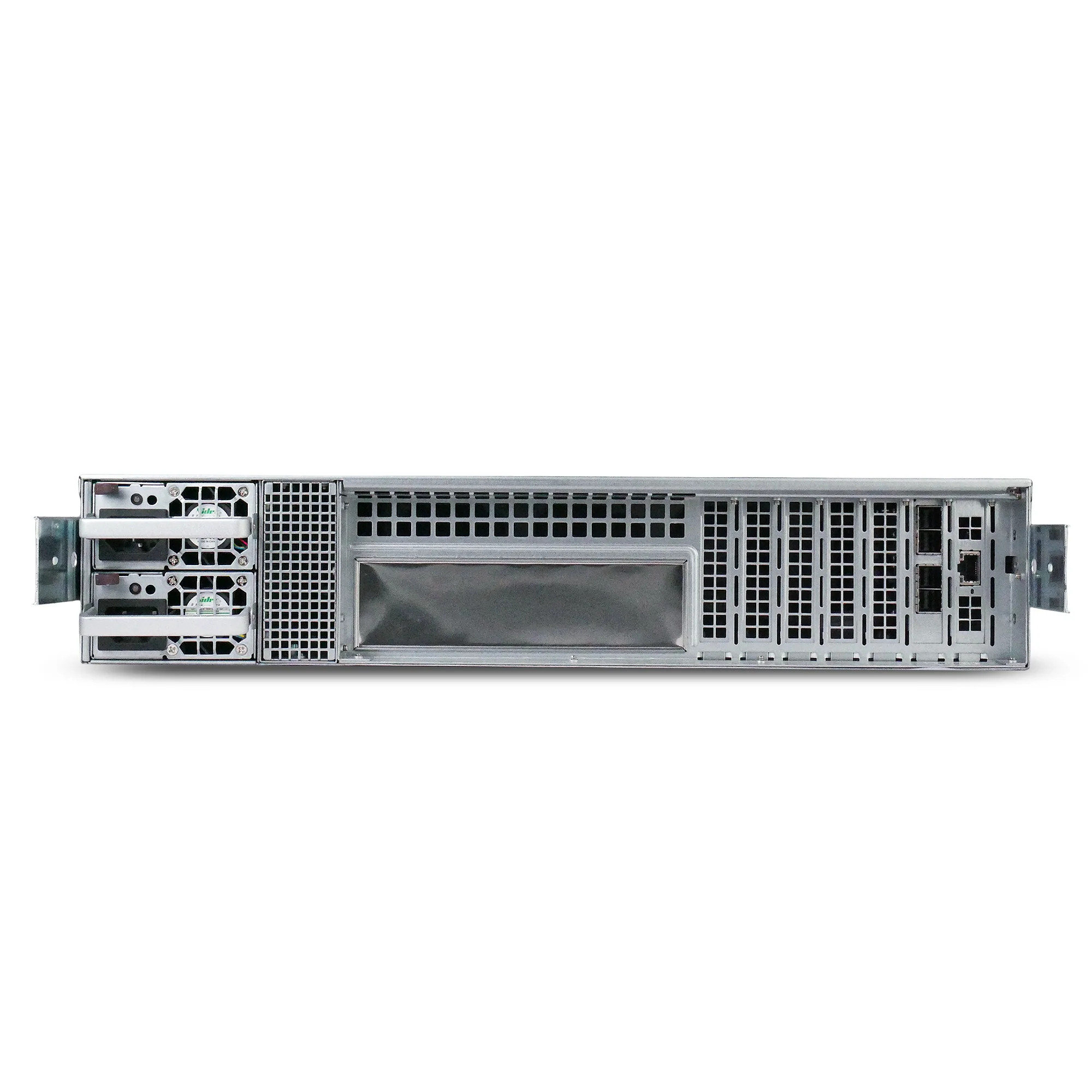

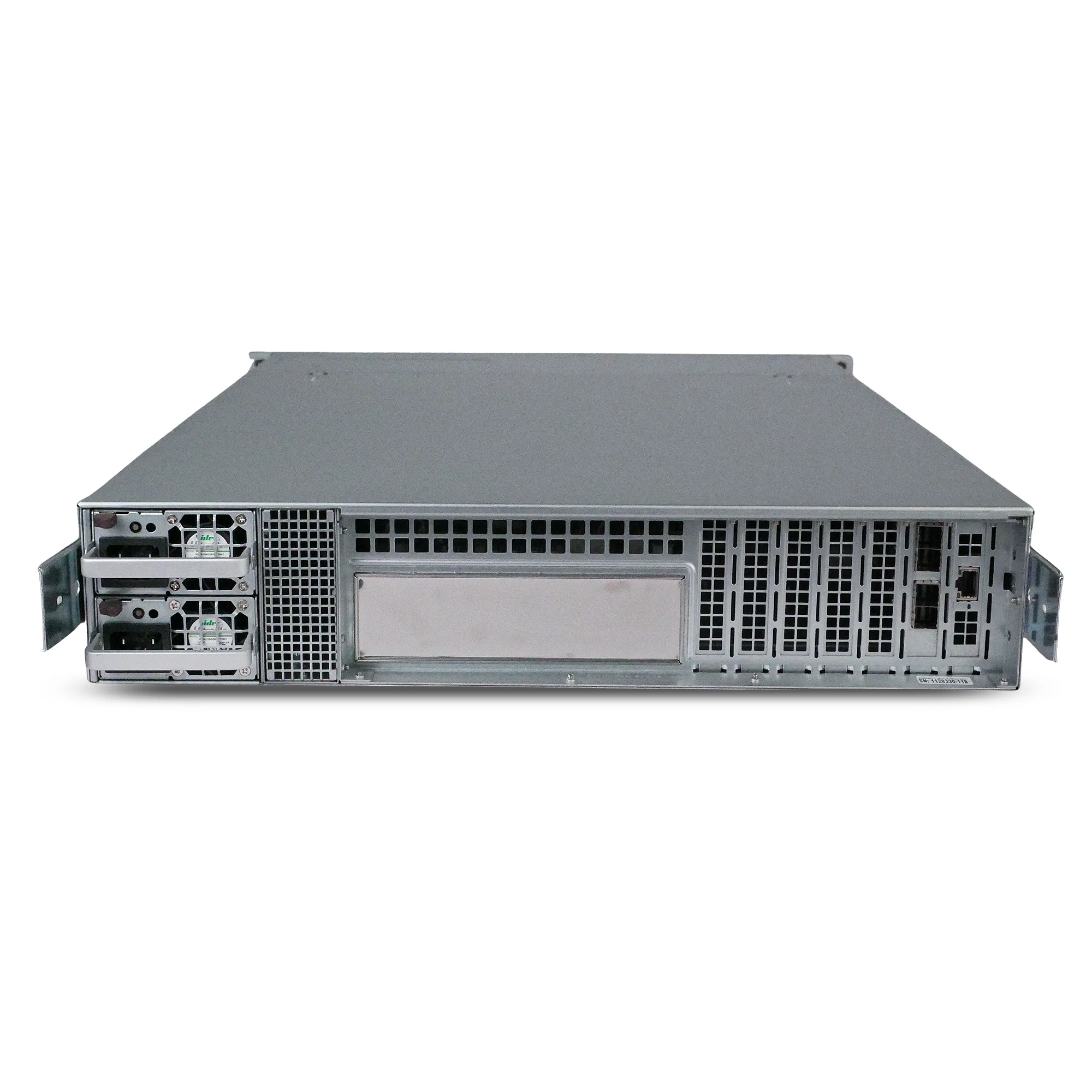

- Redundant Power Design: Includes dual hot-swappable 650W Platinum-level (95% efficiency) power supplies, ensuring reliable and energy-efficient operation with minimal downtime.
- Enterprise-Ready Reliability: Designed for continuous operation with hot-swappable drive bays and power modules, making it suitable for mission-critical storage expansion and data-intensive applications.
Note: Many configurations available, contact us via email or call us for custom options
Datasheet: Supermicro SC216BSpecifications
| Brand |
Supermicro |
| Series |
SC216B |
| Model Number |
CSE-216BE1C-R609JBOD |
| Form Factor |
2U Rackmount |
| Drive Capacity |
Up to 24 hot-swappable 2.5" SAS/SATA drives |
| Interface Protocols | SAS/SATA (via external SAS HBA or RAID controller) |
| Host Connectivity |
External SAS3 12Gbps connections via mini-SAS HD (SFF-8644) ports |
| Internal Interface |
12Gbps SAS3 expander backplane |
| Performance |
Depends on host controller bandwidth (SAS3 up to 12Gbps per lane) |
| Management |
SES (SCSI Enclosure Services) via host system |
| Power Supply |
Dual 650W hot-swappable Platinum-level (≈95% efficiency) |
| Cooling |
3x 80x38mm hot-swap cooling fan(s) |
| Operating Temperature Range |
5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
-40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range |
5% - 95% (non-condensing) |
| Weight |
31 lbs (14.06 kg) |
| Height |
3.5" (89 mm) |
| Width |
17.2" (437 mm) |
| Depth |
24.8" (630 mm) |
